Подробная информация о продукте:

Место происхождения: Хунань, Китай
Фирменное наименование: TENCAN
Сертификация: CE ISO
Номер модели: JM-5

Оплата и доставка Условия:

Количество мин заказа: 1 КОМПЛЕКТ
Цена: Подлежит обсуждению
Упаковывая детали: Шперплатный корпус + Пенообразование
Время доставки: 7-10 рабочих дней
Условия оплаты: T/T, Western Union
Поставка способности: 100 комплектов в месяц
Лучшая цена контакт

Подробная информация

Название продукта: Светлый тип пошевеленная мельница шарика Модель №: JM-5
Напряжение: 220В-50Гц Сила: 00,75 кВт
Скорость вращения: 50-560 об/мин Контроль скорости: Контроль частоты
Общий объем: 5 л Максимальная вместимость: 1.75L
Выделить:

Lab Omnidirectional Ball Mill

,

5L Stirring Ball Mill

,

Pigment Lab Stirring Ball Mill

Характер продукции

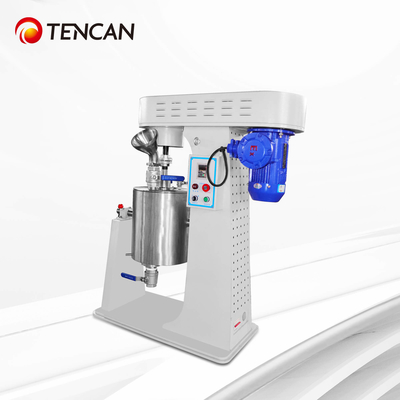

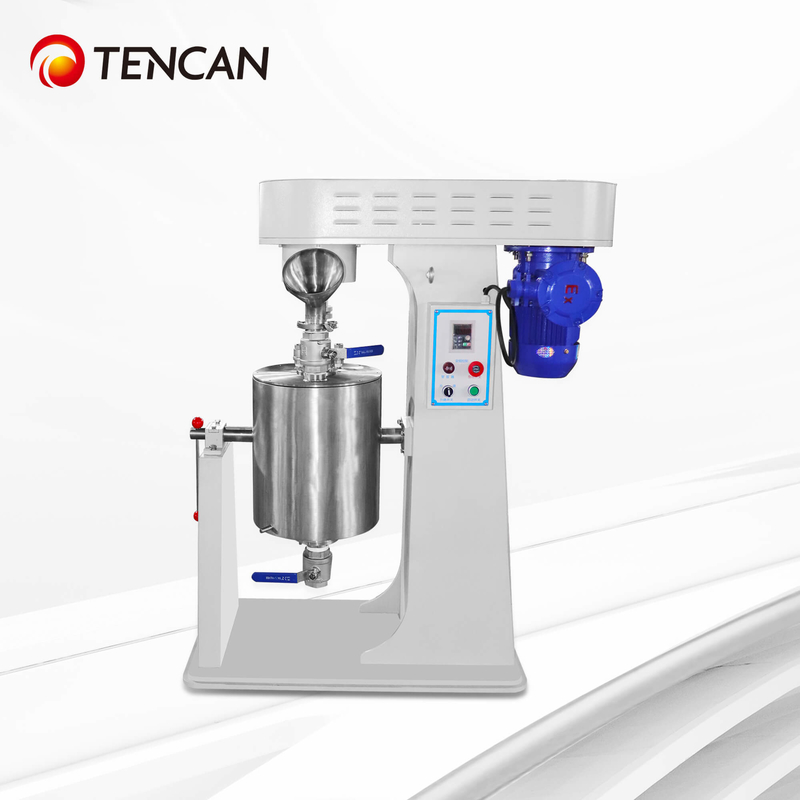

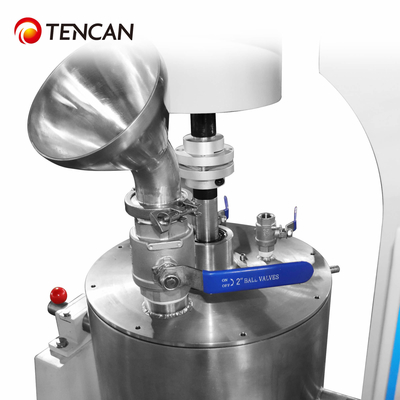

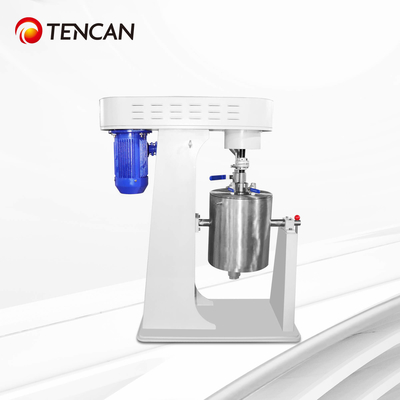

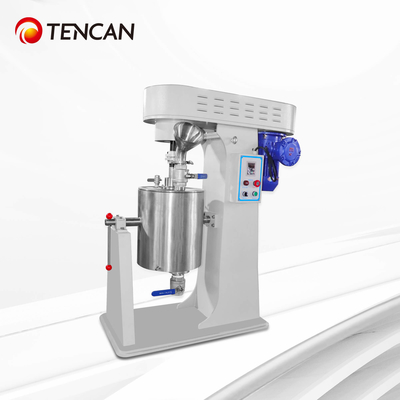

Tencan JM-5 5L Lab Omnidirectional Ball Mill Wet Grinding Painting / Coating / Pigment Lab Stirring Ball Mill





Overview



The stirred ball mill is a high-efficiency grinding system designed for ultra-fine particle size reduction and homogeneous dispersion. Utilizing a unique agitation mechanism, this advanced equipment achieves superior grinding performance compared to conventional ball mills, making it ideal for both laboratory research and industrial production applications.



Working Principle



When machine rotates at high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.



Applications



Battery Materials: Precise grinding of electrode materials
Ceramics Processing: Uniform dispersion of ceramic powders
Coatings Production: Finer particle size distribution
Pharmaceuticals: Controlled particle size reduction
Chemical Industry: Efficient mixing and grinding





Features



1.High-Efficiency Grinding System
Achieves particle sizes down to nanometer range (100nm)
40-60% higher energy efficiency than traditional ball mills
Variable speed control (100-1500 RPM) for optimized processing


2.Advanced Design Components
Robust stainless steel construction with corrosion-resistant finishes
Specially designed agitator for maximum energy transfer
Optional cooling/heating jacket for temperature-sensitive materials


3.Precision Process Control
Digital control panel with programmable parameters
Real-time temperature and speed monitoring
Safety interlock system for operator protection







Technical Parameters



Technical Parameters of Tencan Light Type Stirred Ball Mill
Model No. Rotate Speed
(RPM)
Total
Volume
(L)
Max Load
Volume
(L)
Power Supply Available Jars Feed Sizes
(mm)
Output
Granularity
(μm)
Control Mode
JM-5L 60-560 5 1.75 220V/0.75KW Stainless Steel Jar
Nylon Mill Jar
Corundum Mill Jar
PU Mill Jar
Zirconia Mill Jar
Agate Mill Jar
PTFE Mill Jar
≤5mm ≤1μm Frequency Converter
or Fixed Speed setting
at buyer's option
JM-10L 60-560 10 3.50 220V/1.5KW ≤10mm ≤1μm
JM-15L 60-380 15 5.25 380V/2.2KW ≤10mm ≤1μm
JM-20L 60-380 20 7.00 380V/2.2KW ≤10mm ≤1μm



Available Mill Jars & Balls



As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.

Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.



Tencan JM-5 5L Lab Omnidirectional Ball Mill Wet Grinding Painting / Coating / Pigment Lab Stirring Ball Mill 0



Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to be protected under special atmosphere. Vacuum mill jar



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.



Tencan JM-5 5L Lab Omnidirectional Ball Mill Wet Grinding Painting / Coating / Pigment Lab Stirring Ball Mill 1



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
