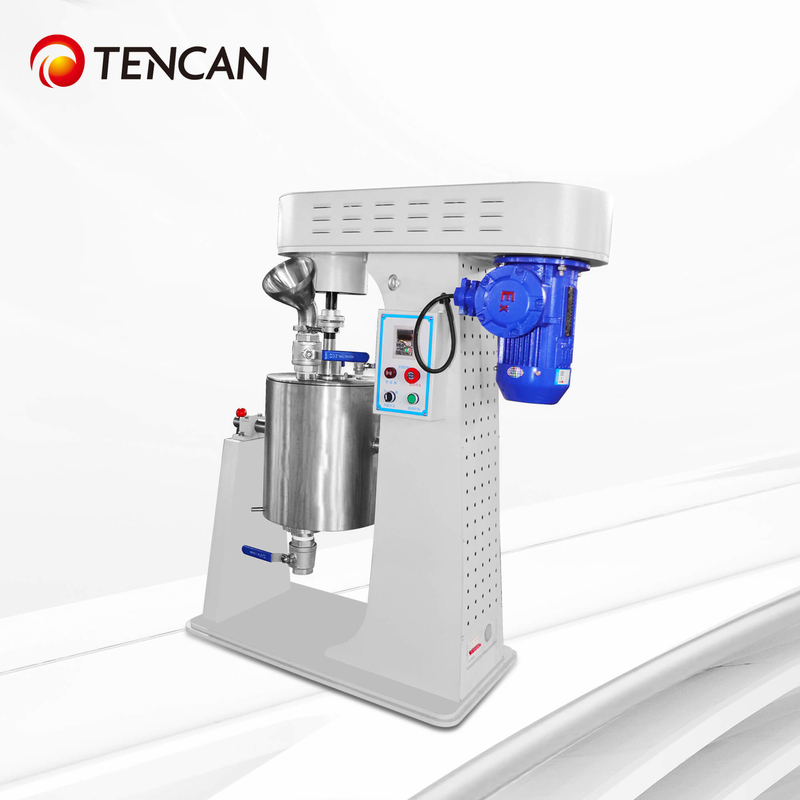

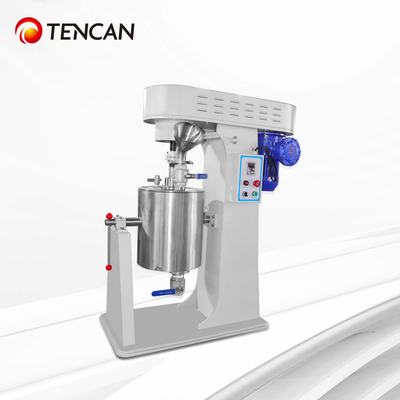

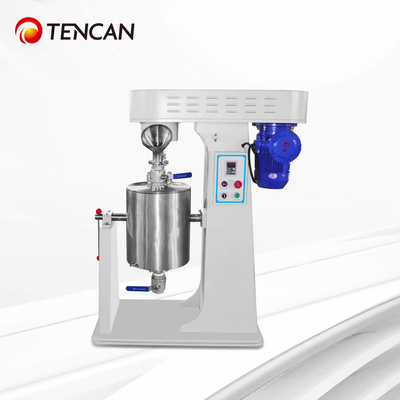

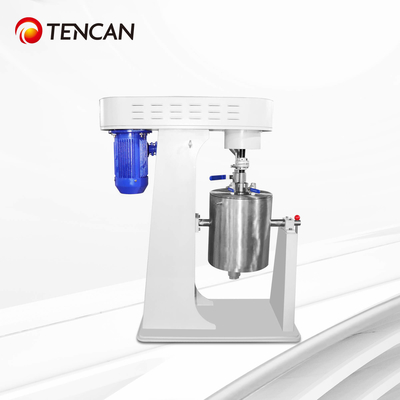

TENCAN JM-50 Chocolate Ball Mill 50L Water Cooling Jacket Low Noise 60dB Max Capacity 17.5L OEM
Подробная информация о продукте:
| Место происхождения: | Хунань, Китай |
| Фирменное наименование: | TENCAN |
| Сертификация: | CE ISO |
| Номер модели: | JM-50 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 КОМПЛЕКТ |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Шперплатный корпус + Пенообразование |
| Время доставки: | 7-10 рабочих дней |
| Условия оплаты: | T/T, Western Union |
| Поставка способности: | 100 комплектов в месяц |
|
Подробная информация |
|||
| Название продукта: | Светлый тип пошевеленная мельница шарика | Модель №: | JM-50 |
|---|---|---|---|
| Напряжение: | 380В-50Гц | Сила: | 4.0КВт |
| Скорость вращения: | 60-140 оборотов в минуту | Контроль скорости: | Контроль частоты |
| Общий объем: | 50 л | Максимальная вместимость: | 17.5L |
| Выделить: | Water Cooling Chocolate Ball Mill,OEM Chocolate Ball Mill,50L Chocolate Ball Mill |
||
Характер продукции
TENCAN JM-50 Chocolate Ball Mill 50L | Water Cooling Jacket | Low Noise <60dB | OEM Available
Overview

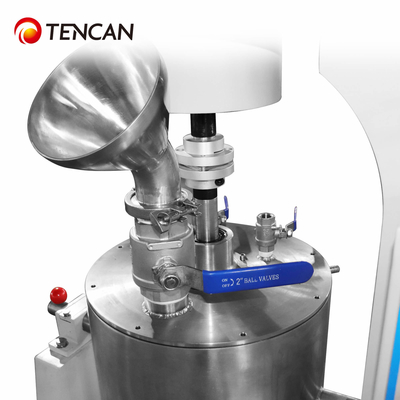

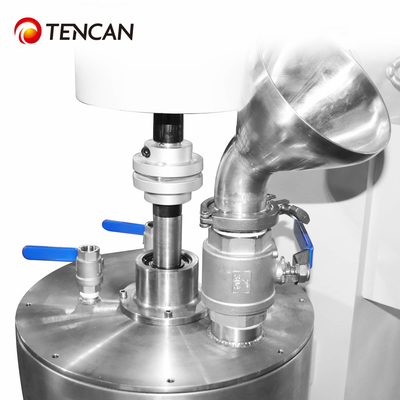

The light stirring ball mill mainly consists of a grinding chamber containing internal grinding medium, a stirring mechanism, and auxiliary components, including a material recirculation system, temperature regulation device, programmable timer, and variable speed control. This device has excellent processing efficiency and the ability to reduce ultra-fine particle size, making it very suitable for various industrial applications. Its compact design, energy-efficient operation, and cost-effectiveness make it a model solution for material development and coating research in academic institutions, corporate research and development facilities, and industrial laboratories.
Working Principle
Through the high-speed rotation of the central drive shaft, the grinding medium undergoes chaotic motion in the chamber, causing strong crushing, grinding, and shear forces on the processed material, resulting in the production of micron sized powder. The grinding performance is directly affected by the medium size, geometric structure, and optimal medium combination. Generally speaking, an increase in medium size is associated with finer particle output. The precise calibration of the medium combination combined with speed optimization ensures excellent grinding performance.
Applications
This advanced grinding system has been widely used in multiple industries, including advanced ceramics (zirconium silicate, alumina composite materials), specialty chemicals, electronic components, magnetic materials, paper coatings, mineral processing, new material development, surface treatment, graphite modification, pharmaceutical formulations, calcium carbonate refining and other professional fields.
Features
1. Excellent energy conversion efficiency, reducing operating costs
2. Precise particle size control through adjustable processing time
3. Advanced vibration reduction technology to achieve quiet operation
4. Intuitive design simplifies user operations
5. Flexible configuration of batch or continuous processing mode
6. Temperature regulating jacket chamber for thermal management
7. Customized engineering solutions, including programmable control, speed regulation, material recycling system, and thermal regulation
8. Multiple material chamber options, including 316L stainless steel, alumina ceramic, polyurethane lining, and yttria stabilized zirconia components
Technical Parameters
| Technical Parameters of Tencan HeavyType Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-30L | 60-310 | 30 | 10.50 | 380V/3.0KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤10mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-50L | 60-140 | 50 | 17.50 | 380V/4.0KW | ≤10mm | ≤1μm | ||
| JM-100L | 60-140 | 100 | 35.00 | 380V/7.50KW | ≤20mm | ≤1μm | ||
| JM-200L | 60-110 | 200 | 70.00 | 380V/11KW | ≤20mm | ≤1μm | ||
| JM-300L | 60-110 | 300 | 100.00 | 380V/15KW | ≤20mm | ≤1μm | ||
| JM-500L | 60-90 | 500 | 170.00 | 380V/18.50KW | ≤20mm | ≤1μm | ||
| JM-600L | 60-90 | 600 | 200.00 | 380V/22KW | ≤20mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
