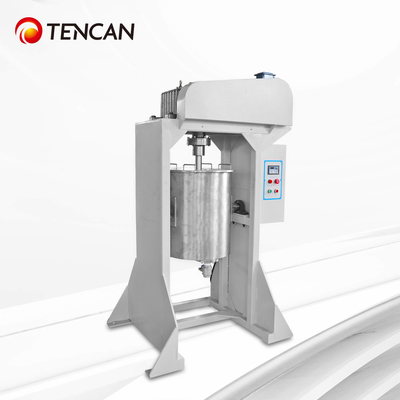

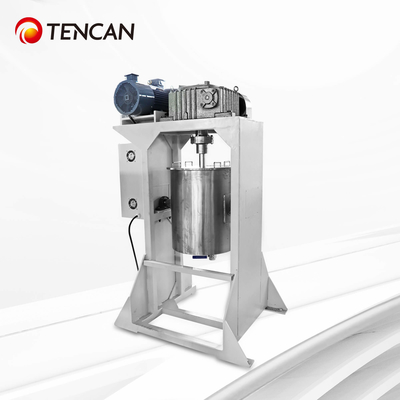

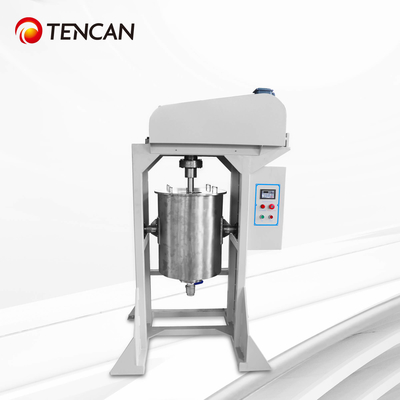

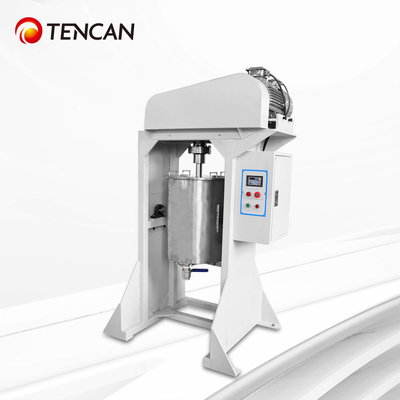

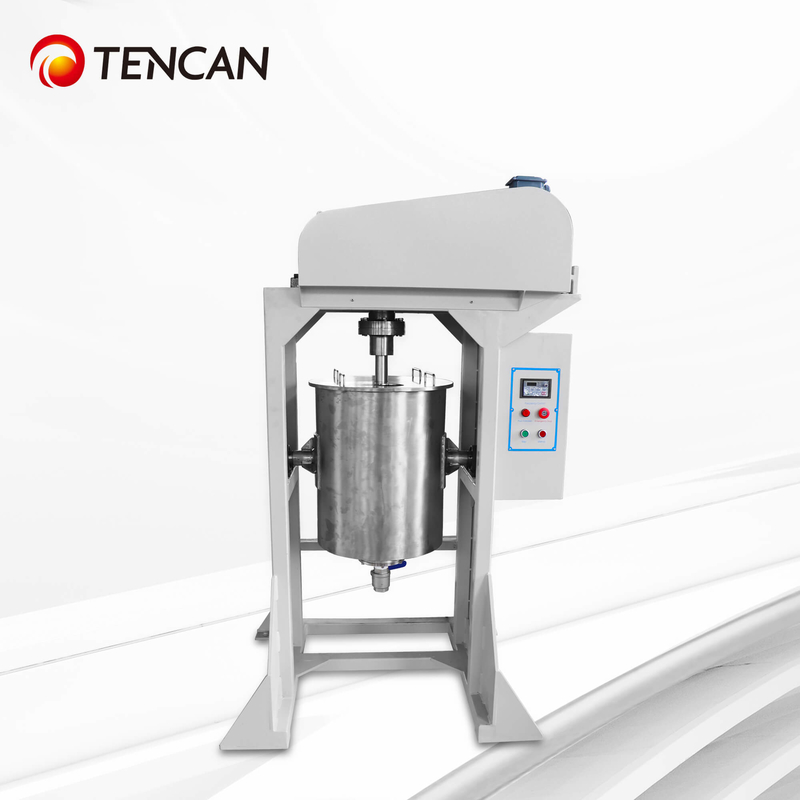

Stirred Ball Mill with Frequency Control 380V Industrial Model Max Capacity 33L For Ceramic Slurry/Coating Materials
Подробная информация о продукте:
| Место происхождения: | Хунань, Китай |
| Фирменное наименование: | TENCAN |
| Сертификация: | CE, ISO9001 |
| Номер модели: | JM-100 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 КОМПЛЕКТ |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Шперплатный корпус + Пенообразование |
| Время доставки: | 7-10 рабочих дней |
| Условия оплаты: | T/T, Western Union, MoneyGram |
| Поставка способности: | 100 комплектов в месяц |
|
Подробная информация |
|||
| Название продукта: | Тяжелый тип пошевеленная мельница шарика | Модель: | JM-100 |
|---|---|---|---|
| Напряжение: | 3PH 380V-50Hz | Сила: | 7.5 кВт |
| Скорость вращения: | 60-110 rpm | Контроль скорости: | Контроль частоты |
| Общий объем: | 100л | Максимальная вместимость: | 33L |
| Выделить: | Industrial Model Stirred Ball Mill,Coating Materials Stirred Ball Mill,380V Stirred Ball Mill |
||
Характер продукции
100L Heavy Duty Chocolate Refiner | Stirred Ball Mill with Temp Control | CE Certified for Chocolate Factory
Overview
The Heavy Duty Stirred Ball Mill is engineered with a reinforced grinding chamber containing high-density milling media, a robust agitation system, and integrated process control components including material circulation systems, precision temperature regulation units, programmable operation timers, and variable speed drives. This industrial-grade equipment delivers superior grinding efficiency and consistently achieves micron-scale particle size reduction, meeting the most stringent process specifications across diverse industries. Its heavy-duty construction, combined with energy-efficient operation and competitive pricing, makes it particularly suitable for pilot-scale production and industrial R&D applications in material science, chemical engineering, and food processing sectors.
Working Principle
Through high-torque rotation of the reinforced drive shaft, the grinding media undergoes intensive multi-directional movement within the chamber, subjecting processed materials to powerful impact, shear, and compression forces that produce uniform fine powders. Critical process parameters include:
Media characteristics (size distribution 1-10mm, sphericity >90%)
Optimal media loading ratio (60-80% of chamber volume)
Precise speed control (typically 100-1500 RPM)
Industrial practice demonstrates that proper optimization of these parameters enables:
✔ D90 particle size down to 5-50μm
✔ Narrow particle size distribution
✔ Minimal heat generation
Applications
Features
Technical Parameters
| Technical Parameters of Tencan HeavyType Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-30L | 60-310 | 30 | 10.50 | 380V/3.0KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤10mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-50L | 60-140 | 50 | 17.50 | 380V/4.0KW | ≤10mm | ≤1μm | ||
| JM-100L | 60-140 | 100 | 35.00 | 380V/7.50KW | ≤20mm | ≤1μm | ||
| JM-200L | 60-110 | 200 | 70.00 | 380V/11KW | ≤20mm | ≤1μm | ||
| JM-300L | 60-110 | 300 | 100.00 | 380V/15KW | ≤20mm | ≤1μm | ||
| JM-500L | 60-90 | 500 | 170.00 | 380V/18.50KW | ≤20mm | ≤1μm | ||
| JM-600L | 60-90 | 600 | 200.00 | 380V/22KW | ≤20mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
