Uniform Mixing Without Dead Zones 5-500L Industrial V-Shape Powder Blender with 220V or 380V Voltage

Industrial V-Shape Powder Blender - Uniform Mixing Without Dead Zones

Overview

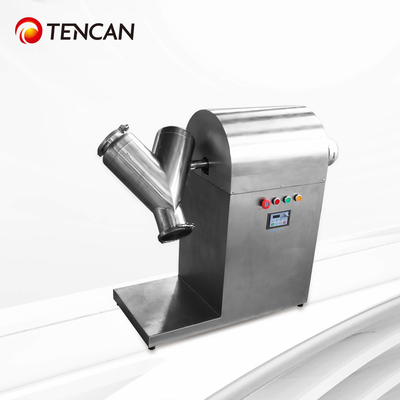

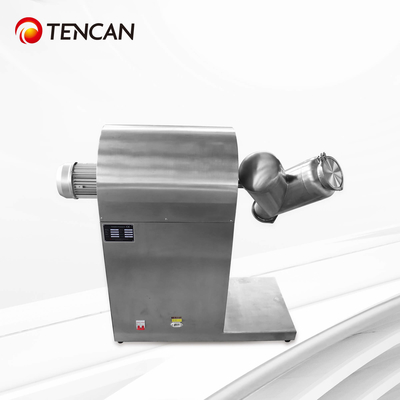

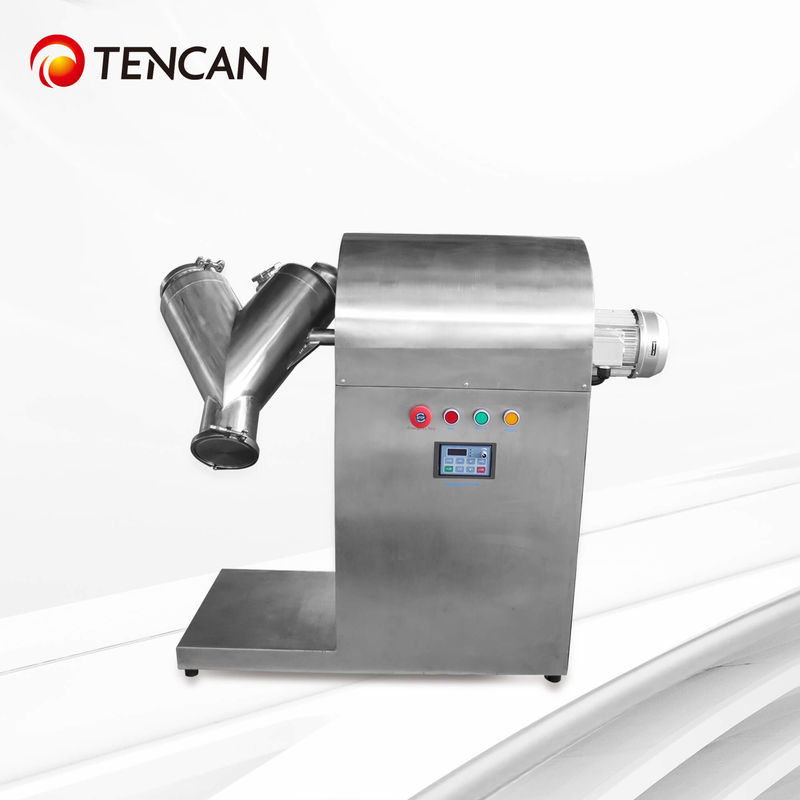

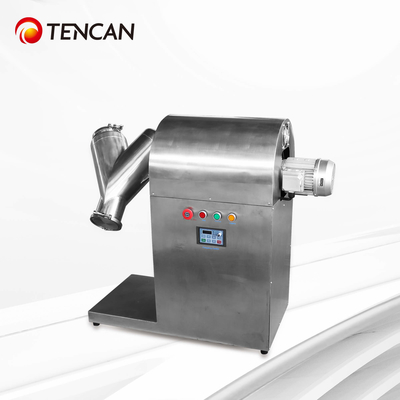

The V-type powder mixing machine is a high-efficiency blending equipment designed for pharmaceutical, food, chemical, metallurgical, and electronic industries. It specializes in homogenizing dry granular materials through its advanced mixing mechanism. Featuring manual feeding and a sealed disc valve discharge system, the machine effectively prevents dust leakage during operation. Its distinctive asymmetrical barrel design ensures thorough mixing without dead angles, while the premium stainless steel construction maintains material purity. The interior and exterior surfaces are mirror-polished for easy cleaning and contamination prevention. With optional forced mixer attachments available, this versatile equipment can handle various materials including fine powders, small aggregates, and slightly moist mixtures, making it ideal for diverse industrial applications.

Working Principle

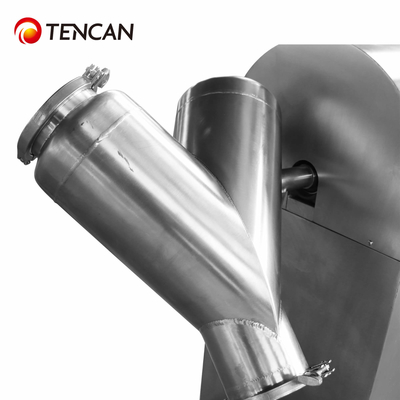

The V-type powder mixer operates through a unique dual-cylinder configuration where two asymmetrically arranged barrels are welded together to form the mixing chamber. During rotation, the granular materials undergo continuous segmentation and recombination processes. This dynamic action creates a three-dimensional movement pattern where particles are alternately transferred between the cylinders, achieving multi-layered stacking and radial dispersion. The combination of gravitational settling and surface sliding ensures uniform particle distribution throughout the mixing cycle, resulting in perfect homogenization without particle degradation.

Features

1. Superior Mixing Performance - Achieves perfect homogeneity for materials with similar particle size and density characteristics
2. Gentle Material Handling - Specialized design prevents particle crushing during the mixing process
3. Particle Integrity Protection - Non-extrusive mixing action preserves original material properties without excessive wear
4. Hygienic Construction - Seamless polished surfaces (internal/external) eliminate contamination risks and ensure easy cleaning
5. Material Versatility - Available in carbon steel, stainless steel, nylon, and other specialized lining materials
6. Intelligent Operation - Programmable timer enables automated mixing cycles with precision control
7. Adaptable Configuration - Optional forced mixing attachments available for specialized applications
8. Dust-Containment System - Closed discharge mechanism maintains clean working environment

Parameters
