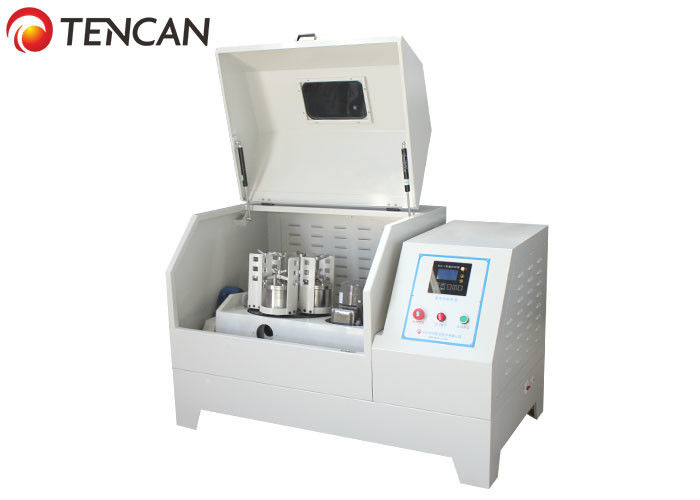

Full-Directional Planetary Ball Mill for Precise Laboratory Powder Processing
Подробная информация о продукте:
| Место происхождения: | Хунань, Китай |
| Фирменное наименование: | TENCAN |
| Сертификация: | CE ISO |
| Номер модели: | QXQM-6 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 КОМПЛЕКТ |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Фанера или коробка |
| Время доставки: | 10 рабочих дней после полной оплаты |
| Условия оплаты: | Т/Т, Вестерн Юнион |
| Поставка способности: | 100 комплектов в месяц |
|
Подробная информация |
|||
| Название продукта: | Полноправленная планетарная шаровая мельница | Модель №.: | QXQM-6 |
|---|---|---|---|
| Общий объем: | 6L | Максимальная емкость: | 2л |
| Скорость вращения: | 70-670 об / мин | Контроль скорости: | Контроль частоты |
| Напряжение: | 220V-50 Гц или 110 В-60 Гц | Власть: | 0,75 кВт |
| Выделить: | full-directional planetary ball mill,laboratory powder processing mill,precise planetary ball mill |
||
Характер продукции

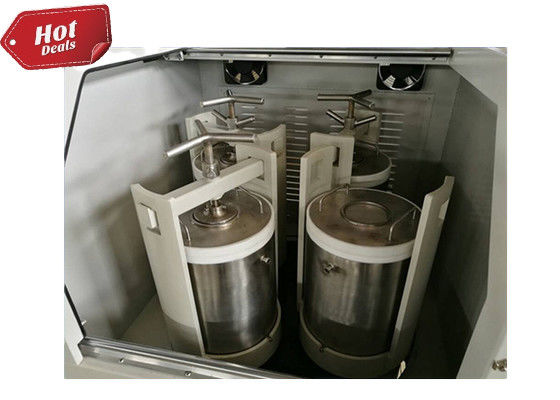

Tencan 4-Station 1.5L*4 Full-directional Planetary Ball Mill with 4 Jars | CE Certified for Metal/Alloy/Soil Grinding
Next-Generation Grinding Technology
Our 6L omnidirectional planetary ball mill represents a quantum leap in precision powder processing, featuring groundbreaking 360° multi-axis rotation technology. This high-capacity benchtop system delivers unmatched grinding uniformity for advanced material research and small-batch production applications. With four 1500ml processing chambers, the mill enables concurrent preparation of multiple samples while maintaining laboratory-grade precision and reproducibility.
Innovative Motion System
The mill's patented omnidirectional mechanism creates a dynamic 3D grinding environment where each jar simultaneously rotates on multiple axes. This sophisticated planetary movement generates perfectly distributed impact forces, achieving consistent particle sizes down to 100 nanometers. The continuous 360° rotation ensures complete material coverage without dead zones, while preventing sample accumulation for optimal grinding efficiency.
Specialized Material Processing
This advanced system excels in demanding applications:
-
Energy storage materials (battery cathodes, solid electrolytes)
-
Advanced ceramics (structural, functional, bioceramics)
-
Electronic components (MLCC, varistors, ferrites)
-
Nanocomposites (graphene hybrids, quantum dots)
-
Pharmaceutical compounds (API micronization)
-
Optical materials (phosphors, luminescent powders)
-
Technical Excellence
-
Comprehensive 3D Processing: Complete elimination of grinding blind spots
-
Intelligent Control System: Digital frequency modulation with customizable programs
-
Optimized Material Handling: Prevents material agglomeration and ensures uniform dispersion
-
Large-Scale Processing: Quadruple 1500ml chambers for productive batch operations
-
Integrated Safety Systems: Intelligent emergency stop protection mechanisms
-
Versatile Media Support: Accommodates diverse grinding media materials
-
Controlled Atmosphere Capability: Adaptable for vacuum or inert atmosphere processing
Performance Advantages
The system's refined mechanical architecture delivers outstanding energy utilization with 30% increased impact energy compared to conventional milling systems. Its precision-balanced rotation mechanism functions at merely 68dB, while the ruggedized framework guarantees oscillation-free operation. The user-friendly control platform enables exact adjustment of milling parameters for specialized material specifications.
Industry-Specific Benefits
Research laboratories capitalize on the system's capacity to generate nano-scale powders with exceptional uniformity. Industrial operators obtain production-validated outcomes with transferable processing metrics. The mill's distinctive omni-directional technology renders it essential for implementations demanding uncompromising consistency in particle size characteristics and morphological properties.
Technical Features
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 48 hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
| Parameters of Full-Directional Planetary Ball mill | |||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
