4L Omnidirectional Planetary Ball Mill with 360 Degree Grinding and 70-670 RPM Speed for Laboratory Use

4L Omnidirectional Planetary Ball Mill for Uniform Powder Grinding

Product Overview

The 4L omnidirectional planetary ball mill is designed for laboratory powder grinding, material mixing, sample preparation and small-batch process development. Compared with a standard planetary ball mill, the full-directional structure adds 360° overturning movement during operation, helping the material move more completely inside the jars and reducing common problems such as settling, sticking and uneven grinding.

This model is suitable for research teams and production laboratories that require stable grinding performance, flexible jar selection and repeatable results across different materials. It can be used for dry grinding, wet grinding, mixing and mechanical alloying, depending on the sample properties and selected grinding media.

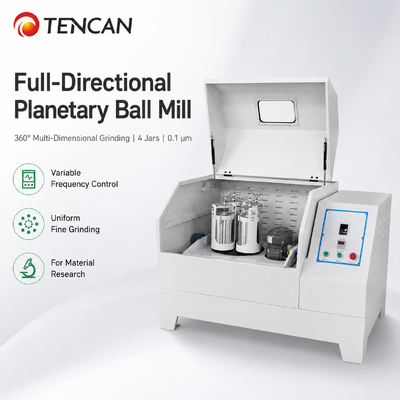

Full-Directional Grinding Design

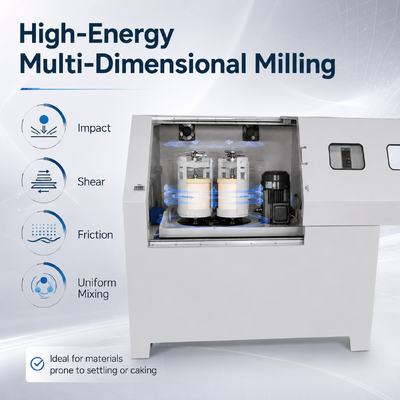

During operation, the grinding jars rotate around their own axes while the planetary disk revolves. At the same time, the full-directional mechanism changes the jar position in three-dimensional space. This combined motion allows the grinding balls and materials to be repeatedly lifted, impacted, rolled and sheared from different directions.

The result is more active material circulation inside the jar, improved use of the grinding media and better grinding consistency, especially for samples that are easy to accumulate in one area during conventional milling.

Application Areas

The full-directional planetary ball mill is widely used in laboratories, universities, research institutes and material development centers. Typical applications include:

• Battery materials, cathode and anode powders, solid-state electrolyte research
• Electronic ceramics, dielectric materials, MLCC-related powders and ferrite materials
• Advanced ceramics, zirconia, alumina, silicon carbide and composite materials
• Minerals, soil samples, pigments, glass, phosphors and inorganic powders
• Magnetic materials, functional materials and nanocomposite preparation
• Chemical, environmental, metallurgical and new material research

Key Product Advantages

1. 360° omnidirectional motion: Helps reduce grinding dead zones and improves material movement inside the jar.
2. Stable batch consistency: Supports more uniform grinding results for laboratory sample preparation and process testing.
3. Two or four jars working together: Allows multiple samples or comparative experiments to be processed at the same time.
4. Flexible grinding jar options: Compatible with stainless steel, agate, nylon, corundum, zirconia and other jar materials.
5. Suitable for dry and wet grinding: Can be selected according to the material characteristics and target particle size.
6. Variable speed and timing control: Convenient for setting different grinding programs for research and testing.
7. Wide material compatibility: Suitable for powder refinement, mixing, dispersion and mechanical alloying applications.

Why Choose This Model?

For materials that require finer and more uniform grinding, the omnidirectional design provides a practical solution by improving the movement path of the grinding media. It is especially useful when conventional planetary milling cannot fully prevent material deposition or uneven particle distribution.

The machine also offers strong flexibility for different laboratory workflows. Users can select suitable jar materials, ball materials and grinding programs according to sample hardness, contamination requirements, grinding time and target fineness.

Grinding Result Notes

The final particle size depends on the material type, feeding size, grinding jar material, ball-to-material ratio, grinding time, speed setting and wet or dry processing conditions. For new materials or special applications, sample testing is recommended to confirm the most suitable grinding parameters before batch processing.
