1700°C Lab Sintering Furnace Muffle Furnace for Ceramic Sintering and Thermal Processing

Подробная информация о продукте:

Место происхождения: Китай
Фирменное наименование: TENCAN
Сертификация: CE

Оплата и доставка Условия:

Количество мин заказа: 1
Время доставки: 7~15
Условия оплаты: Л/К, Д/А, Д/П, Т/Т, западное соединение
Лучшая цена контакт

Подробная информация
Тип продукта: Лабораторная печь коробчатого типа Максимальная температура: 1800°С
Рабочая температура: 1700 ° C. Объем камеры: 1л~729л, настраиваемый
нагревательный элемент: Сопротивление нагрева проволоки Контроль температуры: 50-сегментное программируемое ПИД-регулятор
прокладка печи: Поликристаллическое муллитовое волокно Охлаждая дизайн: Двухслойный корпус с вентиляторным охлаждением
Безопасность Защита: Защита от перегрева Приложение: Спекание, плавление и анализ материалов
Выделить:

Ceramic Sintering 1700°C Muffle Furnace

,

Thermal Processing 1700°C Muffle Furnace

,

1700°C Lab Sintering Furnace

Характер продукции

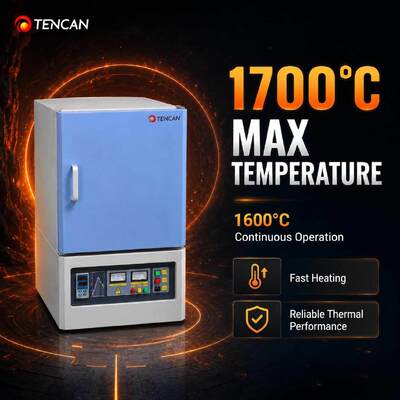

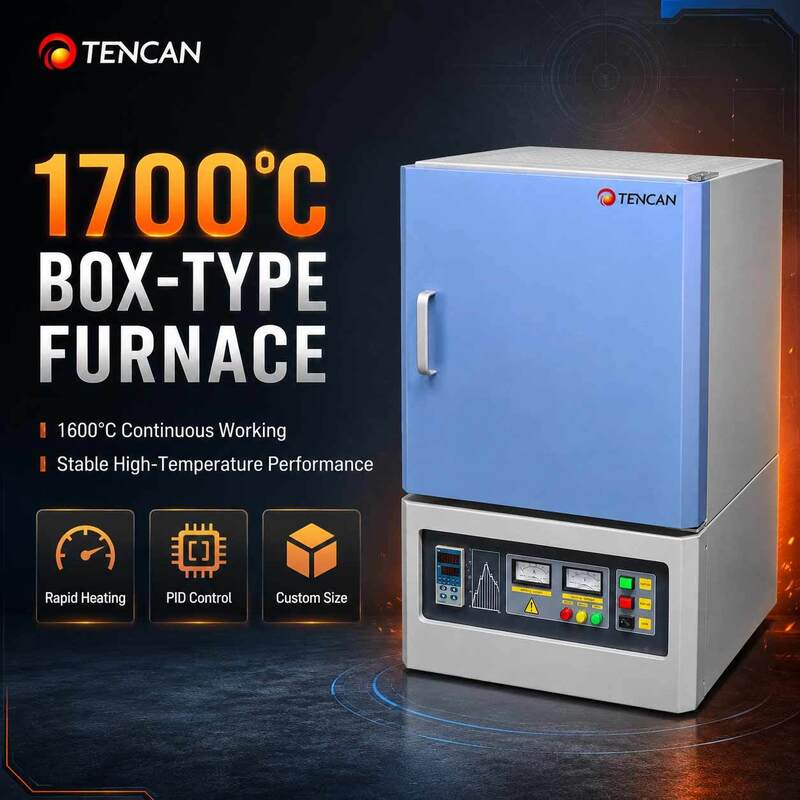

1700°C Muffle Furnace for High-Temperature Thermal Processing

The 1700°C Muffle Furnace is designed for laboratories, universities, research centers, and industrial testing departments that require stable high-temperature performance for ceramic sintering, calcination, firing, material analysis, and thermal processing. It provides a closed heating chamber that helps maintain a clean processing environment and supports consistent heating results for different sample types.

This 1700°C electric box furnace is suitable for ceramics, metal oxides, mineral materials, inorganic compounds, powder samples, and other high-temperature research materials. It is widely used in material development, quality inspection, powder metallurgy, ceramic engineering, chemical testing, and small-batch experimental production.

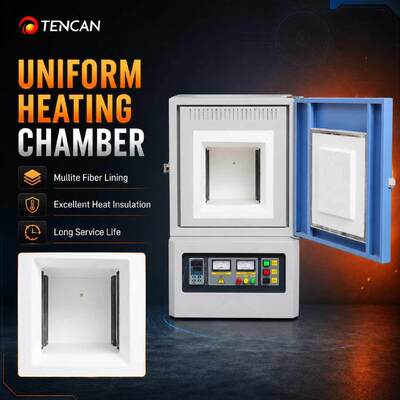

The furnace adopts high-temperature insulation materials with low heat loss and strong thermal stability, helping improve heating efficiency while maintaining reliable chamber performance during repeated heating cycles. The reinforced chamber design enhances structural durability and supports long-term use under demanding operating conditions.

With accurate temperature control, steady heat distribution, and dependable safety protection, this 1700°C muffle furnace offers an efficient solution for users who need reliable high-temperature equipment for research, testing, and production preparation.

Muffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle FurnaceMuffle Furnace

Product Features

  • Maximum temperature range: room temperature to 1800°C.
  • Available chamber capacities from 1 L to 1000 L.
  • Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
  • Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

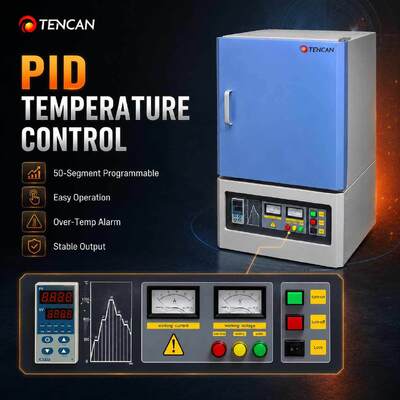

  • Intelligent 50-segment programmable automatic temperature control.
  • Built-in over-temperature alarm for safer operation.
  • Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.

1200°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-12N-1 1200 1100 100×100×100 1 0.8 1 Type K
TC-12N-3 1200 1100 150×150×150 3 2.5 1 Type K
TC-12N-8 1200 1100 200×200×200 8 5 1 Type K
TC-12N-12 1200 1100 200×200×300 12 6 1 Type K
TC-12N-36 1200 1100 300×300×400 36 10 3 Type K
TC-12N-64 1200 1100 400×400×400 64 16 3 Type K
TC-12N-125 1200 1100 500×500×500 125 25 3 Type K
TC-12N-216 1200 1100 600×600×600 216 36 3 Type K
TC-12N-512 1200 1100 800×800×800 512 64 3 Type K
TC-12N-729 1200 1100 900×900×900 729 80 3 Type K


1400°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-14S-1 1400 1300 100×100×100 1 1 1 Type S
TC-14S-3 1400 1300 150×150×150 3 3 1 Type S
TC-14S-8 1400 1300 200×200×200 8 5 1 Type S
TC-14S-12 1400 1300 200×200×300 12 7 1 Type S
TC-14S-36 1400 1300 300×300×400 36 11 3 Type S
TC-14S-64 1400 1300 400×400×400 64 18 3 Type S
TC-14S-125 1400 1300 500×500×500 125 27 3 Type S
TC-14S-216 1400 1300 600×600×600 216 40 3 Type S
TC-14S-512 1400 1300 800×800×800 512 70 3 Type S
TC-14S-729 1400 1300 900×900×900 729 88 3 Type S

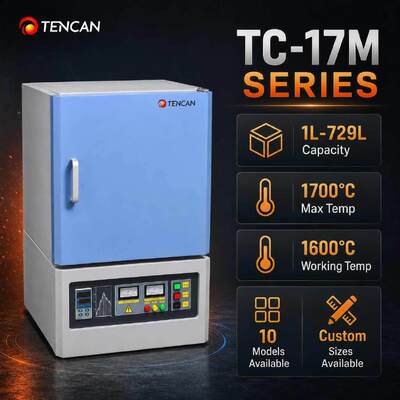

1700°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-17M-1 1700 1600 100×100×100 1 1 1 Type B
TC-17M-3 1700 1600 150×150×150 3 4 1 Type B
TC-17M-8 1700 1600 200×200×200 8 7 1 Type B
TC-17M-12 1700 1600 200×200×300 12 8 1 Type B
TC-17M-36 1700 1600 300×300×400 36 12 3 Type B
TC-17M-64 1700 1600 400×400×400 64 20 3 Type B
TC-17M-125 1700 1600 500×500×500 125 30 3 Type B
TC-17M-216 1700 1600 600×600×600 216 45 3 Type B
TC-17M-512 1700 1600 800×800×800 512 80 3 Type B
TC-17M-729 1700 1600 900×900×900 729 96 3 Type B

1800°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-18HM-1 1800 1700 100×100×100 1 2 1 Type B
TC-18HM-3 1800 1700 150×150×150 3 6 1 Type B
TC-18HM-8 1800 1700 200×200×200 8 8 1 Type B
TC-18HM-12 1800 1700 200×200×300 12 9 1 Type B
TC-18HM-36 1800 1700 300×300×400 36 15 3 Type B
TC-18HM-64 1800 1700 400×400×400 64 25 3 Type B
TC-18HM-125 1800 1700 500×500×500 125 35 3 Type B
TC-18HM-216 1800 1700 600×600×600 216 50 3 Type B

Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.


Related Accessories

Standard Accessories

  • Furnace door insulation brick
  • High-temperature gloves
  • Crucible tongs
  • User manual
  • Spare heating elements for 1400°C and 1700°C models

Optional Accessories

  • HD touchscreen controller
  • Exhaust port
  • Observation window
  • Multi-layer kiln furniture
  • Alumina crucible
  • Communication software
